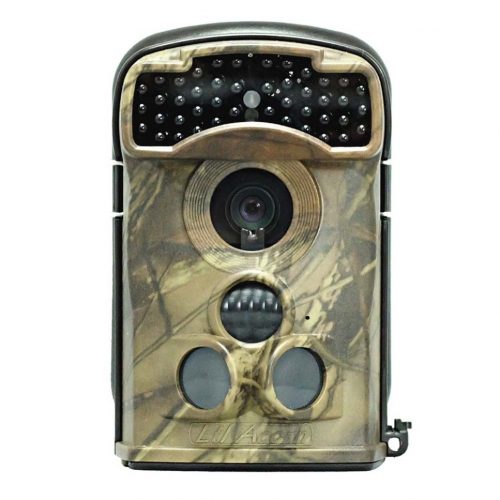

Ltl Acorn 12MP 940NM Infrared MMS Hunting Trail Camera Ltl-5310MG
This manual applies to model Ltl-5310A 、Ltl-5310MG、Ltl-5310WA、Ltl-5310WMG.The Ltl Acorn 5310 Series (Model Ltl-5310A/MC and Ltl-5310MM) is the third generation of our Ltl acorn scouting camera. Bundled with the MMS-module (Multimedia Messaging Service) battery box (Part # LTL-MM)standard scouting camera (Part # Ltl-5310A) can be upgraded to work as a remote cellular camera. With its highly sensitive Passive Infra-Red (PIR) sensor the camera detects the sudden chan ge of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via GSM network to the user’s cell phone or email account. With newly added SMS remote control feature you
can change the related menu of the camera by sending SMS order to the camera in the specific form of the SMS content.
Features:
Programmable 5 or12-Megapixel high-quality resolution.
With SMS RCP (remote control program) parameters of camera can be changed by SMS sending. If in request, the camera can take picture and send back simultaneously.
No-glow Infrared 940nm LEDs flash range as far as 65 feet, luminance as bright as 850nm.
In “Cam + Video” mode, camera takes both pictures and video at every trigger event
Ultra low standby power consumption. Extremely long in-field life (in standby mode, up to 6 months with 8 x AA batteries)
Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
Perform in the most extreme temperatures from -22°F to 158°F
Compact size (5 ½ x 3 ½ x 2 ½ inches). Well designed to deploy covertly
Impressively quick trigger time (0.6 second)
In Time Lapse setting, the camera automatically and constantly takes pictures/videos at specified interval. This is very useful when observing plants flowering, birds building nest, or when monitoring unattended properties such as parking lots
With Timer setting on, the camera can be programmed to only work in specified period every day. This feature can work together with Time Lapse feature
Backpack-looking tree grabber makes mounting and aiming a snap
Serial Number setting enables you to code locations in the photos. This helps multi-camera users identify the location when reviewing the photos
Built-in 2 ¼” TFT color display to review images and videos
Date, time, temperature and moon phase can be stamped in the pictures
Lockable and password protected
MMS image sizes: 640 x 480
Users can configure the Camera and MMS function either by running the enclosed CD on the computer, or directly on the built-in TFT display.
Separation of the Camera and the MMS module provides users flexibility: starting with the value model as a standard scouting camera, and upgrading to the premium model with MMS function.
If local area mobile signal is bad , Could not send MMS, Also can choose to send a text message(SMS). Message content is taking pictures time and Camera serial number.
Our Advanced Remote Cellular Technology transmits images to your cell phone and email account constantly at lower battery consumption and shorter transmission time, compared to products of its kind on the market.
Automatically send text alert when battery power level goes low
Check cellular signal information on the built-in TFT display in the field
All MMS pictures saved in SD card as well as the original ones
Internal antenna design makes the camera portable while still emitting strong signal
Operates globally via GSM/GPRS network. Supports four bands: 850 / 900 / 1800 / 1900MHz.
Specification:
Image Sensor | 5 Megapixels Color CMOS |
Memory | SD Card 8MB~16GB |
Lens | F=3.1mm, FOV=100°, Auto IR-Cut |
Pixel Size | 2560×1920 |
IR Flash | 30feet/10meters |
LCD Screen | 48×35.69mm(2.36”); 480(RGB)x234DOT; 16.7M color |
Picture Size | 5MP/12MP=2560×1920/4000×3000 |
Video Size | 640×480(20fps); 320×240(30fps) |
Operation Mode | Day/Night |
PIR Sensor sight angle | 100 degrees, each lens covers 10 degrees |
PIR Sensitivity | PIR with 3 sensitivity levels: High/Normal/Low |
Trigger time | 0.6 second(when using the 2G SD card) |
Triggering interval | 1 second ~ 60mins Programmable |
Operation Temperature | -30 – +70°C/-22 – +158°F |
Shooting Numbers | 1~3 |
Camera + Video | First take picture and then take video |
Playback Zoom in | 1 ~ 16 times |
Timer | On/Off time lapse programmable |
Password | 4 Protection Numbers |
Device Serial No. | 4 digits and 26 alphabets set by yourself |
Periodic Shot | 1Second ~ 24Hours |
Power Supply | 4xAA battery; expandable to 8xAA |
Stand-by Current | 0.4mA |
Power Consumption | 150mA(+650mA when IR LED lights up) |
Low Battery Alert | 4.2~4.3V |
Interface | TV out(NTSC); USB; SD Card Slot; 6V DC External |
Mounting | Belt, Tripod Nail |
Water Proof | IP54 |
Certificate | FCC, CE, RoHS |
Packing list:
- 1 X 5310MG Digital Camera
- 1 X Additional Battery Box
- 1 X TV AV IN Cable
- 1 X USB Cable
- 1 X Strap
- 1 X CD
- 1 X Manual
- 1 X Warranty card
