Ltl Acorn Ltl-6210MC 1080P Night Vision Trail Camera Hunting Infrared Observation Wild Animal Trap

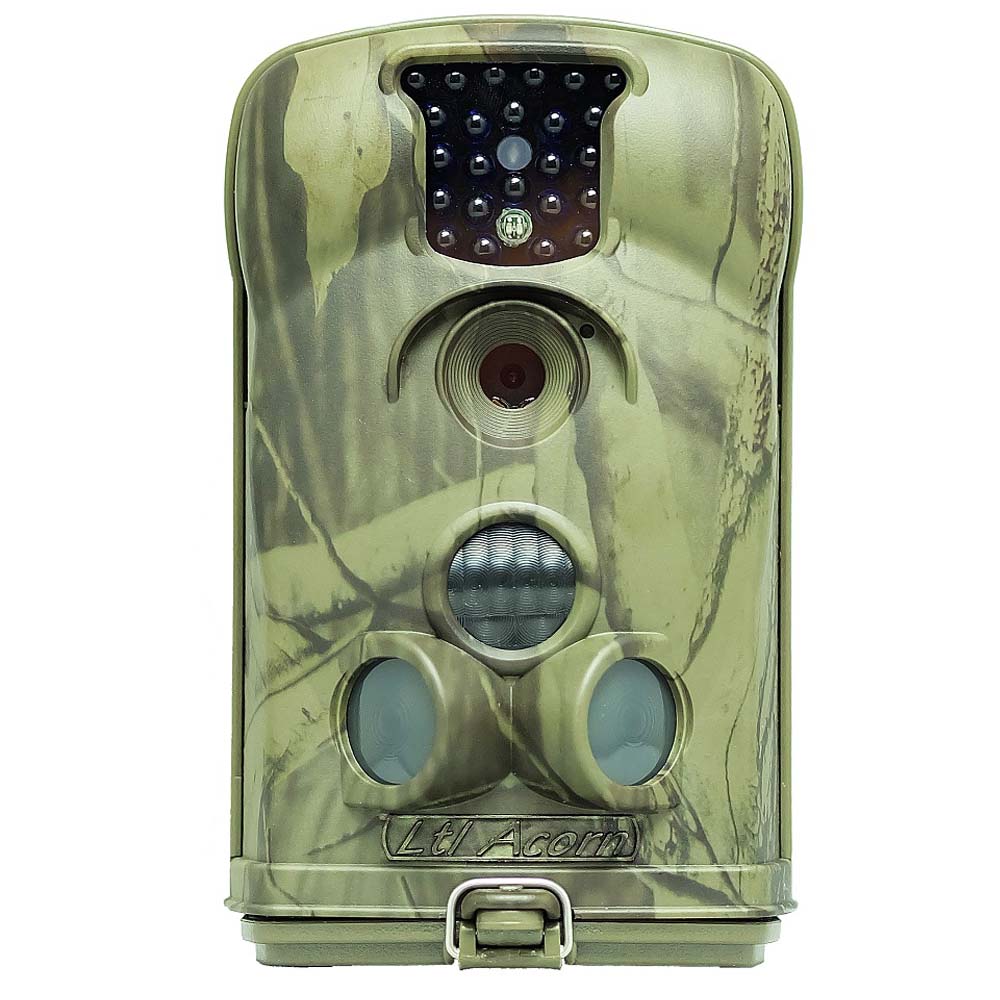

Ltl Acorn Night Vision IR Hunting Trail Camera Ltl-6210MC

The Ltl Acorn Ltl-6210M is a step-up to Ltl-5210M. It provides enhanced features and betterperformances. Bundled with the MMS-module (Multimedia Messaging Service) (Part # LTL-MM2), the standard scouting camera (Part # Ltl-6210MC) can be upgraded to work as a remote cellular camera. With its highly sensitive Passive Infra-Red (PIR) sensor, the camera detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via GSM network to the user’s cell phone or email account. With newly added SMS remote control feature you can change the related menu of the camera by sending SMS order to the camera in the specific form of the SMS content.

Features:

 5M/12M/2M pixel high-quality resolution.
 With SMS RCP (remote control program) parameters of camera can be changed by SMS sending. If in the request, the camera can take picture and send back simultaneously.
 1440 x 1080 / 1280 x 720 / 640×480 H.264/AVC format HD video with audio Infrared night vision LEDs 850nm for flash range as far as 75 feet (25m) (No-glow model 940nm has 39 feet (13m) flash range)
 “Cam + Video” mode enables camera to take both picture and video at every trigger event
 Continuous shooting interval time about 0.5 or 1.0 seconds (stamp off or On)
 Extremely long in-field life (in standby mode, up to 6 months with 12 x AA batteries)
 Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
 Perform in the most extreme temperatures from -22°F (-30°C) to 158°F (70°C)
 Compact size (5 ½ x 3 ½ x 3 inches). Well designed to deploy covertly Impressively quick trigger time (0.8 second)
 Programmable to work as Time-Lapse camera taking pictures/videos in long range day mand night
 When Timer setting on, programmable to only work in specified period every day. This feature can be used together with Time Lapse feature to meet your timetable
 In camera’s bottom cover built-in 2.0” TFT color display to review images and videos.
 Date, time, temperature, moon phase and battery level can be stamped on picture
 Lockable and password protected
 Send 640 x 480 resolution MMS image
 Setup is a snap by running the user-friendly software on the enclosed CD on the computer, or directly on the built-in TFT display.
 Can change several language of the menu through setting country in MMS menu or in PC Setup
 Separation of the Camera and the MMS module provides users flexibility: starting with the value models a standard scouting camera, and upgrading to the premium model with MMS function.
 SD card can be set in “Cycling Save” mode, which automatically deletes the earliest photos or videos and makes room for new ones.
 Advanced Remote Cellular Technology transmits images to your cell phone and/or email account constantly at lower battery consumption and shorter transmission time, compared to products of its kind on the market.
 Text alert when battery power level goes low
 Check cellular signal reception on the built-in TFT display on the field
 Internal antenna design. External antenna is available when using security box.
 Operates globally via GSM/GPRS network. Supports four bands: 850 / 900 / 1800 / 1900MHz.

Specifications:

Image Sensor: 5 Mega Pixels Color CMOS
Pixel Size: 2560×1920
Lens: F=3.1; FOV=52°; Auto IR-Cut
IR Flash: 65 Feet/20 Meters; 32 Feet/10 Meters on
No-glow Flash
LCD Screen: 40.8×30.6mm(2.0″);480(RGB)*240DOT;16.7M Color
Operation Keypad: 6 Keys
Memory SD Card: (8MB ~ 32GB)
Picture Size: 5MP/12MP/2MP =2560X1920/4000X3000/1600X1200;
Video Size: 1440×1080: 15 fps; 1280×720: 30fps;640×480: 30fps;
PIR Sensitivity: High/Normal/Low/Off
PIR Sensing Distance: 82ft/25m（Below 77°F/25°C at the Normal Level）
Prep PIR Sensing Angle: Left and right light beams form an angle of 100°; Each lens covers 10°
Main PIR Sensing Angle: 35°
Operation Mode: Day/Night
Trigger Time: 0.8 Second (When using the 2G SD card)
Trigger Interval: 0sec. – 60min; Programmable
Shooting Numbers: 1~3
Video Length: 1-60sec.; Programmable
Camera + Video: First take Picture then Video
Playback Zoom In: 1~16 Times
Time Stamp: On/Off; Include serial No., temperature and moon phase
Timer 1: On/Off; Programmable
Timer 2: On/Off; Programmable
Password: 4-Digit Numbers
Device Serial No. : 4 digits and 26 alphabets set by yourself
Time Lapse: On/Off; 1 Second ~ 24 Hours Programmable
Beep Sound: On/Off;
SD Card cycle: On/Off;
Low-Battery SMS Alert: “Battery Low” text alert sent Upgradeable Yes
language setting: Change Country Can Setting Language
Power Supply: 12xAA; Yes Yes
External DC Power Supply Plug Size: 4.0mmx1.7mm ,6 ~ 12V (2 ~ 1A)
Stand-by Current: 0.4mA
Stand-by Time: 4～6 Months（4xAA～12xAA）
Auto Power Off: Auto power off in 2 minutes if no keypad input
Power Consumption: 150mA (+350mA when IR LED lights up)
Low Battery Alert: 4.2~4.3V
Interface TV out (NTSC); USB; SD Card Slot; 6V
DC External: Yes
Mounting Strap; Tripod
Waterproof IP54
Operation Temperature: -22~+158°F/-30 ~+70°C
Operation Humidity: 5% ~ 95% Yes Yes
Certificate FCC & CE & ROHS

Application
 Trail camera for hunting
 Animal or event observation
 Motion-triggered security camera, for home, office and community
 All other indoor/outdoor surveillance where intrusion evidence and live alert needed

Packing List：

1 X Digital Camera

1 X TV AV IN Cable

1 X USB Cable

1 X Strap

1 X CD Manual

1 X Warranty Card
