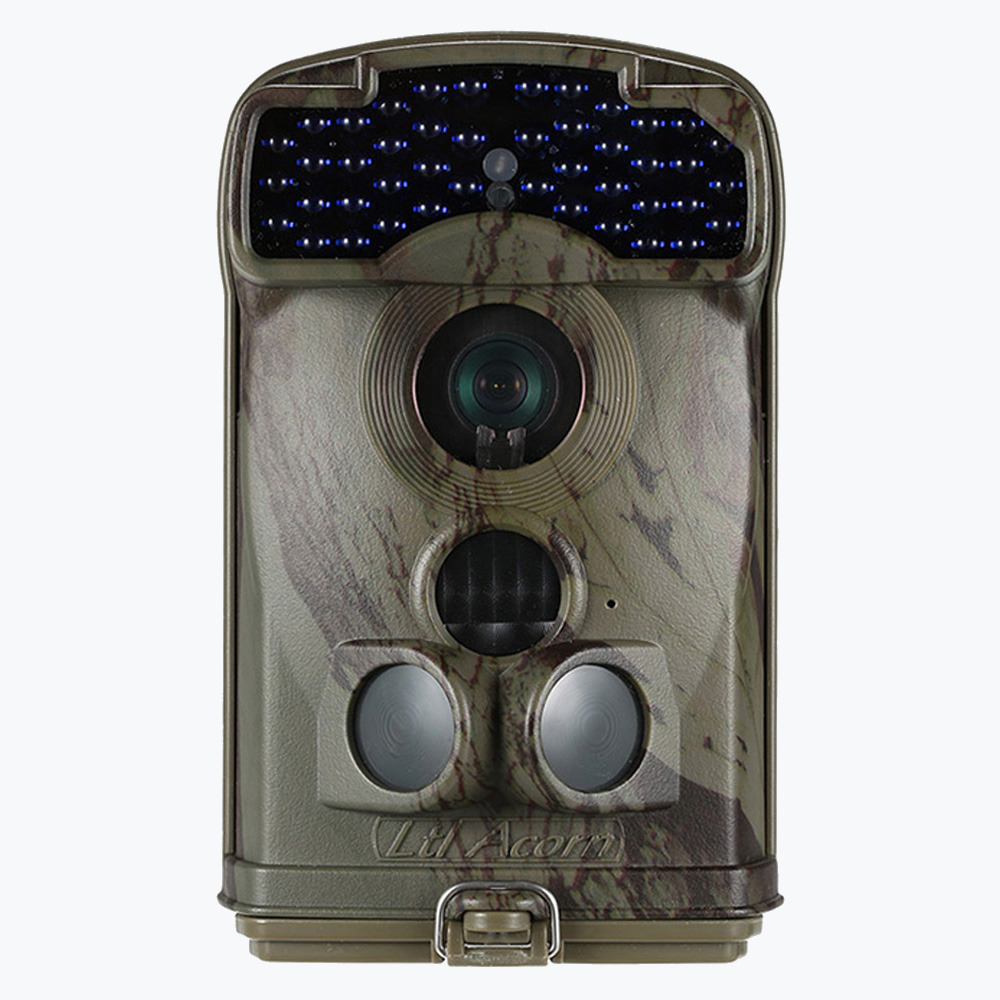

Ltl Acorn Infrared Wide Angle Hunting Trail Camera Ltl-6310WMC
TThis manual applies to model Ltl-6310MC, Ltl-6310MG, Ltl-6310WMC, Ltl-6310WMG.Ltl-6310 series camera, with its highly sensitive Passive Infra-Red (PIR) sensor, detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via 2G GSM network to your cell phone or email account.With newly developed SMS remote control feature you can change the settings of your camera by sending it text messages in a particular format. Ltl-6310, a step-up version of Ltl-6210, provides better performance through enhanced features. Forty-four LED 940nm makes Ltl-6310 series most outstanding on night picture quality, ideal for security and surveillance purposes. Ltl-6310W with wide lens of 100°takes picture in a view 4 times wider in range than other products of its kind.
Features:
Different position of screen to avoid erosion from battery leakage and potential damage from the camera being accidentally dropped during installation.
5M/12M/2Mega pixel high-quality resolution.
Text your camera to change its parameters, made possible by the new SMS RCP (remote control program). Also, instruct your camera to send pictures it has taken to you using SMS order CODE 60 (see the list of order codes in Section 2.7 SMS Remote Control).
1440 x 1080 / 1280 x 720 / 640×480 H.264/AVC format HD video with audio.
Ltl-6310W with wide lens of 100°takes picture in a view 4 times wider in range than oth er products of its kind.
Ltl-6310 series (non-wide lens) Infrared night vision LEDs 850nm flash range as far as 115feet/ 35m, Low-grow 940nm 59feet/ 18m.
Ltl-6310W series Infrared night vision LEDs 850nm flash range as far as 98feet/ 30m, Low-glow 940nm 44 feet / 13.5m.
“Cam + Video” mode enables camera to take both picture and video every time it triggers.
Take multiple consecutive pictures with an interval time of about 1.5 seconds.
Extremely long in-field battery life (in standby mode, up to 6 months with 12 AA batteries)
Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed.
Perform in the most extreme temperatures from -22°F (-30°C) to 158°F (70°C)
Compact size (5 ½ x 3 ½ x 3 inches). Well designed to deploy covertly.
Impressively quick trigger time (0.8 seconds).
Programmable to work as Time-Lapse camera taking pictures/videos in long range day and night.
When Timer setting is turned on, programmable to only work in specified period every day. This feature can be used together with Time Lapse feature to meet your timetable.
Built-in 2.0 inch TFT color screen to review images and videos at the back of the camera.
Date, time, temperature, moon phase and battery level can be stamped on picture
Lockable and password protected
Send 640 x 480 resolution MMS image.
Setup is a snap. Just run the user-friendly software on the enclosed CD on the computer, or do it directly on the built-in TFT screen.
Multiple languages available by changing the country setting in MMS menu or PC software.
SD card can be set in “Cycling Save” mode, which automatically deletes the earliest photos or videos and makes room for new ones.
Advanced Remote Cellular Technology transmits images to your cell phone and/or email account constantly at lower battery consumption and shorter transmission time, compared to similar products on the market.
Get SMS Text alert when battery power level goes low.
Check cellular signal reception on the screen.
Convenient internal antenna design. External antenna available when using security box.
Operates globally via 2G GSM/GPRS network. Supports four bands: 850 / 900 / 1800 /1900MHz.
Specifications:
Image Sensor: 5 Mega Pixels Color CMOS
Max Pixel Size: 2560×1920
Lens: F=3.1; FOV=100°; Auto IR-Cut
LCD Screen: 40.8×30.6mm(2.0″); 960(RGB)*240DOT;16.7M Color
Operation Keypad: 6 Keys
Memory SD Card: (8MB ~ 32GB)
Picture Size: 5MP/12MP/2MP =2560X1920/4000X3000/1600X1200;
Video Size: 1440×1080: 15 fps; 1280×720: 30fps;640×480: 30fps;
PIR Sensitivity: High/Normal/Low/Off Yes Yes Yes
PIR Sensing Distance: 65ft/20m(Below 77°F/25°C at the Normal Level)
Prep PIR Sensing Angle: Left and right light beams form an angle of 100°; Each lens covers 10°
Main PIR Sensing Angle: 35°
Operation Mode: Day/Night
Trigger Time: 0.8 Seconds
Trigger Interval : 0sec. – 60min; Programmable
Shooting Numbers : 1~3
Video Length: 1-60sec.; Programmable
Camera + Video: First take Picture then Video
Playback Zoom In: 1~16 Times
Time Stamp: On/Off; Include serial No., temperature and moon phase
Timer: On/Off; Programmable
Timer2: On/Off; Programmable
Password: 4-Digit Numbers
Device Serial No.: 4 digits and 26 alphabets set by yourself
Time Lapse: On/Off; 1 Second ~ 24 Hours Programmable
Beep Sound: On/Off;
SD Cycle: On/Off;
Low-Battery SMS Alert: “Low battery ” text alert sent
Change Country Can Setting Language:Yes
Power Supply: 12xAA;
External DC Power Supply: Plug Size: 4.0mmx1.7mm,6 ~ 12V (2 ~ 1A)
Stand-by Current: 0.4mA
Stand-by Time: 4~6 Months(4xAA~12xAA)
Auto Power Off: Auto power off in 3 minutes if no keypad input
Power Consumption: 150mA (+350mA when IR LED lights up)
Low Battery Alert: 4.2~4.3V
Interface: TV out (NTSC); USB; SD Card Slot; 6V DC External
Mounting Strap; Tripod
Waterproof: IP54
Operation Temperature: -22~+158°F/-30 ~+70°C Yes Yes Yes
Operation Humidity: 5% ~ 95% Yes Yes Yes
Certificate: FCC & CE & ROHS
Application:
Trail camera for hunting
Animal or event observation
Motion-triggered security camera, for home, office and community
All other indoor/outdoor surveillance where intrusion evidence and live alerts are needed
Packing List:
1 X Digital Camera
1 X TV AV IN Cable
1 X USB Cable
1 X Strap
1 X CD Manual
1 X Warranty Card
